- Floorplan - 2015 Heartland Bighorn 3160 Elite
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
36ft Long
-
12,015 lbs

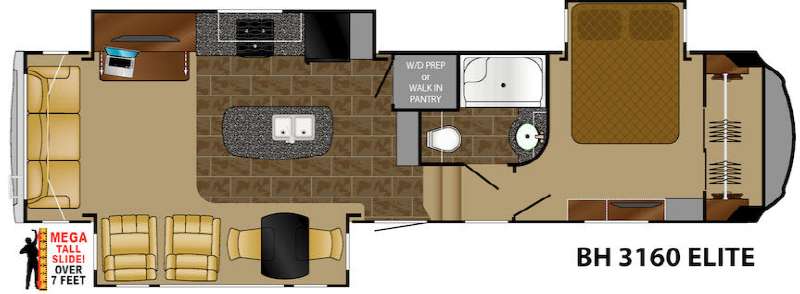

3160EL Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 35 ft 10 in | Ext Width | 8 ft |
Ext Height | 13 ft 3 in | Hitch Weight | 2095 lbs |
GVWR | 15500 lbs | Dry Weight | 12015 lbs |
Fresh Water Capacity | 73 gals | Grey Water Capacity | 90 gals |
Black Water Capacity | 45 gals | Tire Size | LT235/85R16G |
Furnace BTU | 42000 btu | VIN | 5SFBG3723FE287906 |
Description
Enjoy all of your camping trips in this Heartland Bighorn Elite rear living fifth wheel model 3160. It features triple slides for added interior space, and a convenient kitchen island.
As you step inside to the left you have a slide out dinette for two, and two additional swivel glider recliners for seating in the living area. Along the rear wall there is a flip and fold sofa with overhead storage the entire width of the unit. The sofa can also be made into additional sleeping space if needed.
Along the side opposite the door side you will find all of the kitchen amenities needed to create gourmet meals and snacks like; a three burner range, refrigerator, and pantry. There is also an overhead cabinet for storage. A large walk-in pantry is located just off the slide, or you may wish to add a washer and dryer as it has been prepped for both. Another pantry can be found along the interior wall next to the front steps that lead up to the bed and bath area. There is also a kitchen island for added prep space which is where you will find the double kitchen sink to be located.
There is an entertainment center with LCD TV located within the slide that also features the kitchen appliances. It offers a slide out desk beneath the TV for a laptop.
Head up the steps to your right as you enter and find a bath at the top on your left which features a tub/shower, toilet and sink with medicine cabinet above.
The private front bedroom features a slide out queen size bed with a memory foam pillow-top mattress including storage beneath the bed. There is a dresser opposite with an LCD TV above, a storage cabinet for linens, and a full front wardrobe with sliding doors that feature drawer space on either end, and so much more!
Features
Standard Features (2015)
- Glazed hardwood chestnut cabinetry & fascia
- Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
- All cabinet frames are pre-drilled, and screwed together - not stapled
- Baltic birch drawer construction (Real Wood)
- Deluxe ball-bearing drawer guides
- PATENT PENDING Front Cap and Frame Design
- SPECIALLY Designed and Engineered For
- SHORT BED TRUCKS
- Allows for tighter turning radius on
- short bed, extended cab trucks
- Truly unique aerodynamic profile
- Painted front cap
- High gloss sidewalls
- Linc multipurpose wireless remote system with LCD touch screen operates slides, power awning, front landing gear and entry door step light
- ABS hitch cover
- Entry door overhead light
- Automotive aerodynamic styled rear cap with LED turn lights
- Brushed aluminum rear ladder
- 12 volt light
- Exterior shower with hot & cold water
- Black tank flush system hook up
- City water hook-up
- with high pressure fresh tank fill
- Shielded RG-6 coaxial cable hook-up
- Satellite hook-up (roof or tri-pod)
- Holding tanks pull handles
- Winterization valves
- Offering over 140 cubic feet of storage!
- Durable rubber flooring
- with steel tie-downs
- Large insulated slam baggage doors
- Unobstructed pass-through design
- 12V lights
- 1 cable outlet / 110 volt outlet
- Built-In closet system featuring hanging clothes rods, recessed shelving and built-in dresser
- King size bed (N/A 3160 EL)
- Memory foam pillow top mattress
- Two windows in slide for better air flow (N/A in 3585RL, 3750FL)
- Tall dresser with four large drawers
- 6´4? bedroom ceiling height throughout
- Level floor between bath and bedroom
- Adjustable reading lights over bed
- Storage shelves in bed slide room
- Deluxe headboard design
- Pillow package and comforter
- Massive under bed storage
- Pull-out storage drawer in steps
- 32? deep bedroom electric slide rooms (most models)
- Laminated fiberglass sidewalls
- Double-welded aircraft quality aluminum superstructure cage construction
- Drip rail with down spouts
- Deluxe power exterior awning
- Frameless dark tinted safety glass
- windows with UV inhibitor
- Huge panoramic rear bay window
- Huge panoramic windows in dinette
- Ventilation slider side windows
- Welded aluminum frame
- Walkable roof decking (3/16”)
- One-piece seamless EPDM rubber roof
- Radius metal roof cap
- Strong 2½? aluminum framing
- Block foam insulation
- 3/8? seamless decking
- Thermo-board luan on the bottom
- R-14 laminated upper deck floor
- Strong 10? I-beam frame with rust prohibitive coating (12? on larger models)
- Hydraulic landing gear jacks (no snap pins required)
- Heavy duty electric rear stabilizer jacks
- (N/A with six point auto leveling system)
- Correct Track alignment system
- Heavy-duty G-rated 16? tires
- Aluminum rims
- Spare tire
- E-Z Flex™ suspension system by Dexter with quad shocks - for the smoothest ride around
- 7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
- 2? x 12? Nev-R-Adjust brakes by Dexter
- Monogrammed ABS fender skirts
- Seamless corrugated underbelly material
- Heated and enclosed underbelly
- Heated and Insulated holding tanks & gate valves
- Flexfoil insulation (R-14)
- Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
- Quick and easy winterization system
- 67 gallons - fresh water capacity
- 135 gallons waste water - 90 gal. grey / 45 gal. black
- (2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option)
- 80 Amp/12V DC power converter
- 50 Amp detachable marine cord
- Dual battery box (1 battery included)
- 110V exterior electrical receptacles
- Battery disconnect
- Seamless one piece below floor heat duct
- 42,000 BTU furnace
- Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
- Insulated in-roof A/C duct system for maximum efficiency
- Air conditioned stool room
- Walls - R11 *All formaldehyde-free insulation
- Roof – R34
- Slide room floors - radiant insulation R38 equivalent
- Main floor - R38 • upper deck floor - R14
- 6´5? ceiling height
- Hydraulic operating system
- Selector valves for slide rooms
- Double squeegee seals with one-piece
- Weather-proof floor pan
- 12V LED lights
- Cabinets above sofa
Hydraulic manual override system
- Computer desk station (most models)
- Decorative glass door inserts
- 46? or 55? LED high definition TV (Depends on model)
- Pre-wired for Winegard Trav’ler satellite system
- Residential style receiver with built-in DVD Player, FM radio and BluetoothTM
- All-in-one master control panel with
- DSI water heater switch, tank level monitors, slide switches and light switches
- “Welcome back light”
- MCD day/night roller shades
- Metal entry handle
- Custom slide out fascia
- Oil-rubbed bronze lighting package
- Residential swivel glider recliners
- with power massage
- Upgrade flip & fold sleeper sofa
- 110V ceiling fan with light kit (N/A 3160, 3260)
- 8 Cu.Ft refrigerator
- with hardwood door inserts
- 3-burner cook top w/oven
- 30? microwave oven over the range
- boutique pull out sprayer faucet in kitchen
- 12 gal. water heater (gas/electric DSI)
- Recessed LED lighting
- Real solid surface countertops
- with pencil nose edge
- BeauFlor resilient flooring
- 24? deep residential sized cabinets
- Toe kicks (most models)
- Residential size, stainless steel kitchen sink with matching solid surface sink covers
- 20? deep residential size drawers
- Custom crafted dinette table and
- two chairs with built-in storage
- Large, deep pantry
- Three speed, temperature control
- Fan with rain sensor
- 6´4? bath/bed ceiling height throughout
- Beauflor resilient flooring
- Solid surface countertop with undermount
- sink and matching sink cover
- Large mirrored medicine cabinet
- Linen base cabinet storage
- 1-piece fiberglass mini mega shower
- (most models)
- Elegant glass shower surround
- Domed skylight over shower
- Power roof ventilation
- Dual 12V LED lights
- with soft lighting lenses
- Porcelain commode w/foot flush
- Recessed storage shelf
- High gloss exterior fiberglass sidewalls
- Stainless steel appliances
- Painted front cap
- Frameless windows
- Hardwood slideroom fascia
- Dyson cordless vacuum
- Recessed LED lighting
- Upgraded raised panel passage doors
- Upgraded mirrored wardrobe doors
- Correct Track alignment system
- Two folding dinette chairs
- Residential swivel glider recliners
- with power massage
- Whisper quiet A/C system - includes dual high output 15,000 BTU A/C units
- Ivory high gloss sidewalls with painted caps
- Full body paint
- Six point “Level Up” auto leveling system
- Mor/Ryde hitch
- Slide-topper awnings
- Dual pane framless windows
- Generator prep
- 5.5 Onan generator (ask dealer)
- Electric power cord reel with 33´ cord
- Heat pump options (ask dealer for details)
- Yeti extreme weather package
- 11/4? Accessory receiver
- Outdoor entertainment (includes 32" TV, DVD
- stereo combo and power awning on slideroom)
- Electric fireplace (forced option on 3010RE, 3750FL)
- Convection oven
- 32? bedroom TV/DVD combo
- Large (2x2) four door refrigerator
- Three speed, temperature control
- Fan in bedroom or bathroom with rain sensor
- Booth dinette (N/A 3750FL)
- Queen bed IPO king bed (Queen std on 3160EL)
- Programmable safe
- Theater seating (N/A 3010RE, 3750FL)
- Deluxe coffered ceiling (N/A 3750FL)
- 22 cu.ft. refrigerator with stainless steel appliances
- Honey glazed hardwood cabinets
- Dishwasher (N/A 3160EL, 3010RE, 3260EL, 3270RS, 3750FL)
