- Floorplan - 2016 Coachmen RV Catalina 273BH
-
Sleeps 8
-
BunkhouseOutdoor Kitchen
-
29ft Long
-
4,748 lbs

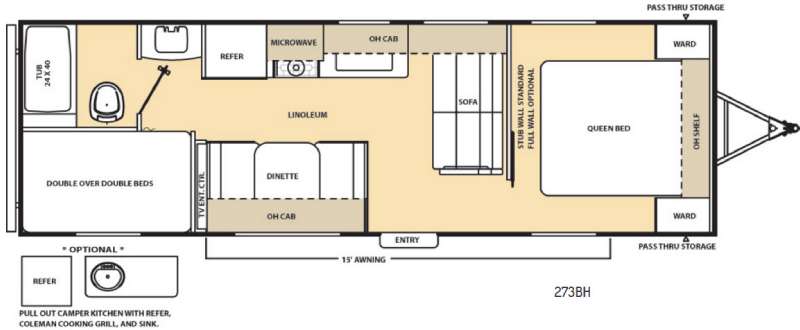

273BH Floorplan
Specifications
Sleeps | 8 | Length | 29 ft 3 in |
Ext Width | 8 ft | Ext Height | 10 ft 7 in |
Int Height | 6 ft 9 in | Hitch Weight | 541 lbs |
GVWR | 7000 lbs | Dry Weight | 4748 lbs |
Cargo Capacity | 2252 lbs | Fresh Water Capacity | 46 gals |
Grey Water Capacity | 40 gals | Black Water Capacity | 30 gals |
Furnace BTU | 20000 btu | VIN | 5ZT2CASB8GA022593 |
Description
This Coachmen Catalina bunkhouse travel trailer model 273BH features a rear bath layout along with double size bunks, and more to enjoy!
Before stepping inside check out the optional pull-out camp kitchen which would be located beneath the bunks. The kitchen provides a refrigerator, Coleman cooking grill, and single sink. There is also a pass-through storage compartment that you can access from either side near the front. This is the perfect place to stow away all of your outdoor gear, and things like fishing poles, golf clubs, and more.
Once inside notice the front bedroom with sliding door. Inside find a queen bed, dual bedside wardrobes, and an overhead shelf. The bedroom and living area are separated by a stub wall or you can add an optional full wall for more privacy.
In the living area there is a sofa that runs width wise along the stub wall for added seating, plus there is a booth dinette for mealtime, or just hanging out on the curb side. A TV entertainment center is above the dinette on the interior wall.
The kitchen provides all the things you need to be able to cook and prepare food for your family. There is a refrigerator, three burner range, microwave oven, and large single sink. There is also overhead storage too.
The rear left corner features a double size bunk beds for the kids or extra guests. The right rear offers a private tub and toilet, plus a separate sink just outside the bath door, and so much more!
Features
- Cambered Structural Steel I-Beam Frame (w/ full width out riggers)
- 3/8" Fully Decked Walk-On Roof
- One-Piece Seamless Walkable Roof
- Radius Entry Steps
- 5/8" Tongue & Groove Plywood Floor Decking
- R-7 Fiberglass Insulation in Sidewalls, Roof & Floor
- Silver E-Coat Maintenance Free Wheels
- G-20 Tinted Windows
- Rain Gutters w/Molded Downspouts
- Platinum .024" Aluminum Exterior Skin w/.030" Skirt Metal
- Painted Bumper w/Drain Hose Carrier and End Caps
- Radius-Cornered Fiberglass Entrance Door
- Roto-Cast Holding Tanks
- Flush Mount Baggage Doors that are Lockable and Radius Cornered
- Polished Aluminum Fender Skirts
- Self-Adjusting Brakes
- 110V GFCI Protected Exterior Receptacle
- 30-Amp Electrical Service w/Deluxe 110V 45-Amp Power Converter
- City Water Hookup
- Solar Power Prep
- Rear Vision Camera Prep
- Large pot & pan drawer
- Full length drawer (1) underneath dinette
- Under-bed storage, bed lifts easily on 2 gas struts
- 2 Shirt closets with mirrors
- Fireplace at the base of the entertainment center (233DS, 243RBS, 293RBKS, 293RLDS, 323TSQB, 333RETS, 343QBDS)
- Standard Fireplace at the base of the entertainment center and in the bedroom (333RETS only)
- AM/FM radio with CD player, iPod and MP3 dock
- Residential in-floor ducted heat (N/A 223FB, 273BH)
- Cable/TV hook-up in front bedroom
- 81” Living room ceiling height
- 2 full-length thermofoil night stands w/ recepts
- Congoleum linoleum flooring
- 30K BTU auto-ignition furnace with wall thermostat (20K BTU 223FB, 273BH)
- Grace Cherry stained wood cabinets
- 12V demand water pump
- Decorative glass in living room cabinets
- Systems monitor panel
- Jack knife convertible sofa with sofa pillows
- Shower curtain with curved shower track
- Neo-angle shower with glass doors (STANDARD 233DS, 243RBS, 253RKS, 263RLS, 283RKS, 293RBKS, 293RLS, 293RLDS, 333BHKS, 333RETS)
- Hard Valance window treatment with lambrequin
- Large dinette tabletop with marine grade pedestal
- Marine toilet with foot flush
- Full size medicine cabinet w/ mirror
- Bathroom exhaust fan
- Drop edge Thermofoil countertop
- Gas/Electric double door refer w/ reversible insert
- High rise faucet w/ large 60/40 double bowl sink
- 3-Burner range w/ 9,000 BTU Superburner™
- Screwed cabinet construction with pocket board solid lumber core stiles
- Easy-View extra large picture window at dinette
- Silverware drawer
- Solid bedroom and bunk room doors (per floorplan)
- Radius corner interior walls (where applicable)
- 13.5K BTU A/C
- Double door refer
- 6 gallon gas/electric DSI water heater
- Metal drawer guides in kitchen
- Radial tires
- Superlube™ axles
- ABS tub/shower surround
- 20lb LP bottles w/ ABS cover and Auto switchover
- Decorative backsplash in kitchen
- Stainless steel microwave
- Patio awning with LED backlight
- Aluminum fender skirts
- Residential quilted bedspread
- Stab jacks (4)
- Water heater by-pass winterization kit
- Continu-us™ TV antenna with RG-6 coax cabling and satellite prep
- Power package (power awning with LED light strip & power tongue jack with light)
- 32″ flat screen TV
- Enclosed and heated underbelly (NA - 223FB, 273BH)
- 13.5K BTU ducted A/C
- 15K BTU ducted A/C
- Multi Media Sound System with CD/DVD player, iPod and MP3 docking
- Swing arm TV bracket
- 50 Amp service with second 13.5K A/C (293RLDS, 323BHDS,323TSQB,333BHKS,333RETS,343QBDS)
- 50 Amp service with second A/C prep (293RLDS, 323BHDS,323TSQB,333BHKS,333RETS,343QBDS)
- Free standing table w/ 4 chairs (N/A U-Dinette floorplans) (STANDARD 293RLDS, 333RETS)
- Stainless steel range with oven IPO 3 burner cooktop
- Tri-fold hide-a-bed sofa (N/A- 233DS, 253RKS and non slide models)
- Kitchen sink covers
- More Wattage for you Cottage audio upgrade
- Range Cover
- Outside shower
- Bar stools (Recommended-233DS, 243RBS, 283DDS, 343QBDS)
- Fireplace in living room (283RKS, 293RLS, 323BHDS CK)
- Skylight above tub/shower
- Spare tire w/tire carrier & cover
- Pull out camp kitchen (273BH, 273DBS, 303BHS) (STANDARD 293QBCK)
- Front diamond plate (mandatory)
- Full wall w/pocket door (Available on 223FB, 273BH)
- Front Queen Bed IPO Quad Bunks (343QBDS)
- Front triple bunks w/ COA cube IPO quad bunk (343QBDS)
- Two (2) 30 lb LP tanks with ABS cover
See us for a complete list of feature and available options!
