Sleeps 9
-
3 Slides
-
LoftTwo Entry/Exit Doors
-
43ft Long
-
14,760 lbs

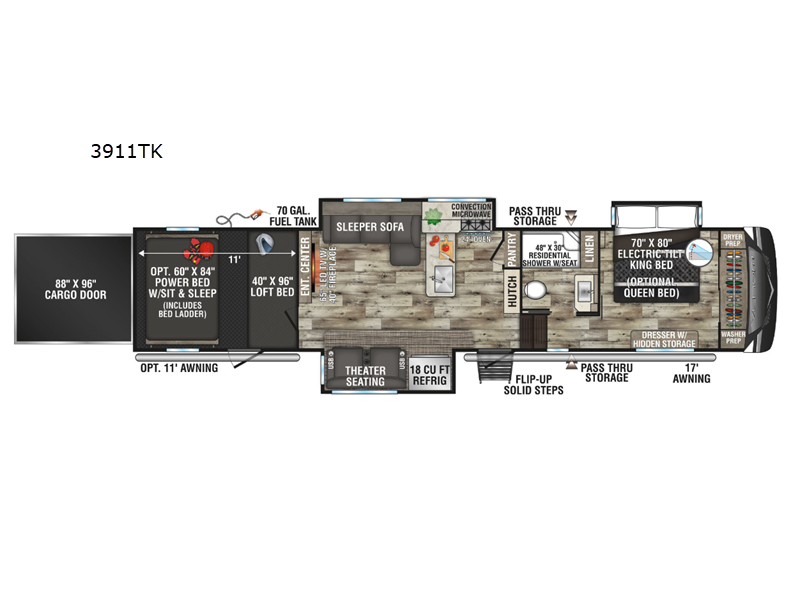

3911TK Floorplan
Specifications
| Sleeps | 9 | Slides | 3 |
| Length | 42 ft 8 in | Ext Width | 8 ft 5 in |
| Ext Height | 13 ft 4 in | Int Height | 8 ft 6 in |
| Exterior Color | White | Hitch Weight | 3230 lbs |
| GVWR | 19000 lbs | Dry Weight | 14760 lbs |
| Cargo Capacity | 4240 lbs | Fresh Water Capacity | 100 gals |
| Grey Water Capacity | 90 gals | Black Water Capacity | 50 gals |
| Tire Size | 16" | Furnace BTU | 40000 btu |
| Fuel Capacity | 70 gals | Number Of Bunks | 1 |
| Available Beds | King | Refrigerator Type | Gas/Electric |
| Refrigerator Size | 18 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 4 | Shower Size | 48" x 30" |
| Number of Awnings | 1 | Axle Weight | 11530 lbs |
| Garage Size | 11 ft | LP Tank Capacity | 30 lbs |
| Water Heater Type | On Demand Tankless | AC BTU | 45000 btu |
| TV Info | LR 65" LED TV, BR 32" Smart LED TV, Garage 40" Smart LED TV | Awning Info | 17' Power with LED Lights |
| Axle Count | 3 | Washer/Dryer Available | Yes |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| Electrical Service | 50 amp | VIN | 4EZFH4437N6070516 |
Description
KZ Venom toy hauler 3911TK highlights:
- 11' Separate Garage
- L-Shaped Sleeper Sofa
- Dual Entry
- Loft Bed
- Hidden Storage Dresser
- Electric Tilt King Bed
Easily load and unload your off-road toys for fun rides, races or long-vacation trips! The 11' garage provides a side door and access to the loft bed, plus you might like to add the optional power bed with Sit & Sleep to create a living area and bedroom after the toys are unloaded. The separate living and kitchen area offers dual opposing slides for more interior floor space, theater seating, plus a 65" LED TV with a 40" fireplace for a residential feel, and full kitchen amenities. The cook will have a peninsula countertop, a 24" oven with a four burner range and a convection microwave to make meals, and a pantry and hutch nearby. There is an L-shaped sleeper sofa as well in this area for more seating and extra sleeping space. After a day of riding the trails you can get cleaned up in the full bath that also includes a linen closet. The exterior provides a 17' power awning and optional 11' power awning, a pass-through storage for the larger camping items, and a 70 gallon fuel tank to keep the toys moving.
With any Venom toy hauler fifth wheel by KZ, you can be confident in the construction from the Tufflex roofing material that is flexible, reflective and puncture resistant, the extra reinforced heavy-duty front fiberglass cap, the double insulated and heated holding tanks, and the additional outside frame-to-wall floor insulation. The fully vented attic allows for unwanted moisture to escape easily, and each model includes the All Weather Insulation Package with a heated, insulated, and enclosed underbelly. Add that with the 40,000 BTU furnace and the three 15,000 BTU ducted roof A/C with Whisper Quiet cooling system, and you'll be camping all year around! The garage has been constructed with your adventures in mind with its E-Track tie-down system, built-in dovetail, and a Zero Gravity ramp door with easy-lift assist. Inside, you will enjoy residential carpet, luxury woven vinyl flooring in the slide outs, extra-large light switches, a residential one-piece fiberglass shower stall with glass doors and a built-in seat for convenience, a central vacuum system with attachments, and much much more! You can add options to customize your Venom such as the Xantrex 125AH Lithium battery with Bluetooth App controls, the "Off The Grid" solar package, the 2,000W Pure Sine Wave inverter, and/or the 7.0KW gas Onan generator, plus more!
Features
Standard Features (2022)
Construction
- 101" Wide-Body Construction
- 6-Sided Aluminum Frame (including welded aluminum fore & aft floor joists, sidewall framing, & roof trusses)
- Extra Reinforced Heavy-Duty Front Fiberglass Cap
- Radius Aerodynamic Front Cap
- 2" x 3" Fully-Welded Aluminum Floor Framing
- 2" x 2" Fully-Welded Aluminum Sidewall Framing
- 5" Welded Aluminum Roof Trusses
- Lippert® Hydraulic Slide System w/Selector Valves
- 12" Powder-Coated Steel I-Beam w/Drop Frame (160 SQ FT pass-thru storage)
- Lamilux 4,000® High Gloss Fiberglass Sidewalls
- All Weather Insulation Package to R38 (roof, floor, garage floor end caps, holding tanks)
- Double Insulated & Heated Holding Tanks (R38 above & below tanks)
- Additional Outside Frame-to-Wall Floor Insulation
- R-13 2" Sidewalls (w/EGS metal backing strips)
- One-Piece ABS Slideroom Bottoms
- 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/Lifetime Warranty
- 45-Degree Radius Aluminum Roof Edge
- Fully-Vented Attic System
- 3/8" Fully Walk-On Roof Decking
- 5/8" Tongue & Groove Screwed & Glued Plywood Floor Decking
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drains located above all insulation)
- Fully-Enclosed & Heated Underbelly w/Direct-Heated Holding Tanks
Exterior
- 7,000 LB Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
- 8-Lug Heavy-Duty Aluminum Rims w/16" G-Range Radial Tires
- 100% Exterior LED Running & Taillights
- Propane Bottles (2 x 30 LBS) on Same Side for Easy Access
- Sealed Battery Storage Compartment (no battery boxes required)
- Triple Front Slam-Latch Baggage Doors
- Side Slam-Latch Baggage Doors w/Dual Locks
- Fully Painted Front Cap w/LED Accent Lights
- Frameless Windows
- 3" x 14" In-Floor Straight Line Heating System
- Ramp Door w/LED Lighting
- LED Docking & Sewer Hookup Lights
- Sewer Hose Storage Tube
- Dual Swing-Away Assist Grab Handle
- Under-Frame Spare Tire w/Hoist
- Roof Ladder
- Heated Water Convenience Center (includes black tank flush, power fresh tank water fill, winterizing system, outside shower, & dry-camping water siphon)
- Fully-Finished Heated & Sealed Basement Storage Compartment
- Camp Table & Patio Chairs Storage Compartment
- Heated & Enclosed Dump Valves
- Satellite Pre-Wire in Convenience Center & Roof
- LP Quick Connect
Kitchen
- Large Dining Table w/Removable Leaf & 2 Heavy-Duty Chairs (2 additional folding chairs 3911TK, 4114TK)
- Power Vent Kitchen Fan w/Wall Controls
- XL Residential Size Pullout Trash Can (where applicable)
- Removable Silverware Tray
- Under-Sink Storage Shelf
- OH Cabinets incl. Shelf & Extra-Tall Slide Lips
- Hidden Cabinet Door Hinges
- 5" Stainless Steel Cabinet Hardware
- Baltic Birch Drawer Boxes
- Heavy-Duty 100 LB Drawer Glides
- LED Kitchen Cabinet Toe-Kicks (where applicable)
- Kitchen Window (most models)
Interior
- 22 OZ Residential Carpet w/3/8" Re-bond Padding
- XL Ceiling Crown Molding
- 100% LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
- Extra-Large Light Switches
- Removable Pedestal Tables in Front of Seating (based on model)
Bedroom
- XL Deep Closet w/Shoe Storage Rack (3911TK, 4013TK)
- Dual Washer/Dryer Prep (stacked or combo)
- XL Under-Bed Storage
- Luxurious Bedspread & Pillow Shams
- Flat Panel TV on Swing Arm
Bath
- Residential One-Piece Fiberglass Shower Stall w/Glass Doors & Built-in Seat
- Shower Skylight
- XL Solid Surface Bath Vanity w/Stainless Steel Sink
- Porcelain Foot-Flush Toilet
- XL Linen Cabinet
- XL Deep Closet w/Shoe Storage Rack (3911TK & 4013TK)
- Extra-Wide Hallway & Pocket Door
- Power Vent w/Wall Switch
- Towel Bar & Towel Ring
Garage
- Roll-Down Screen Wall
- E-Track Tie-Down System
- Built-in Dovetail
- 24" Diamond Plate Wall Guards
- Garage Entry Door
- HD Flat Panel Garage TV on Swing Arm
- (2) Garage Ceiling Speakers
- Zero Gravity Ramp Door w/Easy-Lift Assist
Options
Exterior
- Dual Pane Windows (frameless)
- Wireless Backup Camera - Observation & Vision S
- “Off the Grid” Solar Package by Xantrex (220W solar panel, 30A MPPT solar charge controller w/MPPT remote panel, 2,000W True Sine Wave Inverter w/all outlets "hot")
- Premium “Off the Grid” Solar Package Powered by Xantrex (now features 440W total solar power – we use (2) 220W solar panels tied in series because they produce more power than just (1) 220W solar panel)
- Xantrex 125AH Lithium Battery w/Bluetooth App Controls (monitors charge rate, discharge rate, current level, battery conditions, temperature & includes built-in safety shut down at 10%)
- Flex-Air Pin Box
- 2nd LED Lighted Power Awning (mandatory)
- Ramp Door Patio Package w/Step & Awning (mandatory)
- Three Season Patio Door IPO Screen Wall (mandatory)
- 7.0KW Gas Onan Generator
- 32" Exterior TV w/Bracket
- 30A MPPT Solar Charge Controller w/MPPT Remote Panel (produces 30% more increased power from the solar panel, & it’s 70% more efficient over the competition’s PWM controller). Also Able to Determine Lithium or Lead Battery Type to Maximize Performance
Interior
- 23 CU FT Samsung House Refrigerator w/Water & Ice in the Door – Works w/“Off the Grid” Solar Packages
- Power Vent Fan in Bathroom (mandatory)
- Power Vent Fan in 1/2 Bath (mandatory 4013TK)
- Queen Pillowtop Mattress 60" x 80" (electric tilt)
- Happi-Jac Power Bed w/Roll Over Sofas & Table (mandatory)
- Theater Seating w/Heat & Massage Features IPO Table w/Chairs (3911TK, 4114TK)
- 2,000W Pure Sine Wave Inverter Making All General & GFI Outlets “Hot” (plus, it will include a Xantrex 240AH lithium battery w/Bluetooth app controls)
KZ Advantage Package (mandatory)
Exterior
- 6-Point Hydraulic Auto Leveling
- Polar White High Gloss Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- Front Windshield (select models)
- 6-Sided Aluminum Framing
- Flip-up Entry Steps (main entry)
- 50 AMP Service
- (3) 15K Ducted A/Cs
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- X-Large Folding Grab Handle
- Undermount Spare Tire
- Trailair Rota Flex Pin Box
- Equa-Flex Suspension
- Nitrogen-Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof-Mounted Solar Prep w/Connection
- All Weather Insulation Package (heated, insulated & enclosed underbelly plus foil in floor, roof, front, rear)
- Roof Ladder
- Fully-Vented Attic System w/2 Attic Vents
- Toy Lok®
- Generator Prep w/Dedicated 30 GAL Fuel Tank Plus 40 GAL Fuel Tank & Pump Station
- Retractable Screen Wall
- Leash Latch w/Bonus Beverage Opener
- Metal Latches on Baggage Doors
Interior
- Modern Farmhouse Cabinetry
- Luxury Woven Vinyl Flooring in Slide outs (marine grade)
- Solid Hardwood Slide out Fascia
- Solid Surface Countertops w/Deep Undermount Farmhouse Stainless Steel Kitchen Sink w/Sink Cover
- 24" Oven w/4-Burner Range
- 30" Convection Microwave
- Central Vac System w/Attachments
- Power Vent Fan in Main Area
- Super Sofa (select models)
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- 50" Smart LED TV
- JBL Aura High Performance Wall-Mount Media Center w/Dual JBL Wall-Mount Speakers
- JBL Performance Package (6 JBL speakers & sub-woofer)
- 12V Dual USB Charging Station
- Dual Day/Night Roller Shades
- Porcelain Foot-Flush Toilet
- Stainless Steel Bathroom Sink w/Faucet
- Plywood Bed Base
- Serta Comfort Foam King Mattress w/Electric Tilt Bed
- 32" Bedroom Smart LED TV
- 7' Tall Main Slide Ceiling Height
- 40" Smart LED TV in Garage Bedroom
- Soft Auto-Close Drawer Glides
- Soft Auto-Close Hinges for Cabinet Doors
- RV Airflow System - A/C
KZ Convenience Package (mandatory)
Exterior
- KZ Engage Powered by OneControl w/7" Screen (control system monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, dimmable interior lighting, HVAC controls: includes Wi-Fi prep & connect anywhere prep for full function access by mobile device & includes TPMS system prep, power awning w/LED light strip)
- 16" G-Range Tires w/Aluminum Wheels
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/Wi-Fi Prep
Interior
- 18 CU FT Gas/Electric Refrigerator w/Temperature Controls
- Matte Black Residential Kitchen Faucet w/Sprayer
- Surfex Wood Step in Hallway
- Vision S Prep (blind spot monitoring)
- 40,000 BTU Furnace
- On-Demand Tankless Water Heater
- Lithium Battery Ready
- JBL Flip-5 Bluetooth Speaker w/Locking Wall Mount in Basement
Bonus Features
- One of the Lightest, High-Profile, Wide-Body, Luxury Toy Hauler Fifth Wheels in the Industry
- KZ has received the Dealer Satisfaction Index Award for 19 years
- KZ’s 50 years of stable, dedicated manufacturing experience, coupled with its predominantly Amish workforce, heritage and commitment to superb quality, allow us to produce the lowest-priced luxury fifth wheel available
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
